Release notes for 4.0

Version 4 of the ArcGIS API for JavaScript is a brand new API enabling you to visualize your data in 2D or 3D, easily integrate with your Web GIS, and build a great user experience; all using a simple and consistent API. See the Guide overview for more information, as well as the migration topics.

Autocasting

Autocasting is a convenient way to set typed properties without bringing in extra API modules via the require() function. For further detail regarding this, please refer to the Autocasting guide topic.

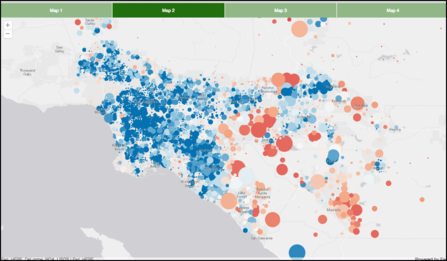

Support for reading WebMaps

Reading WebMaps is partially supported. This means it relies on capabilities already available in the API. For example, it is possible to read WebMaps if they contain layer types that are not yet implemented (e.g. WMS layers). In these instances, only layer types supported by the API will display. For additional information on this, please refer to the WebMap documentation.

Improved FeatureLayer

The FeatureLayer has had significant improvements made to it. For example:

Features within a FeatureLayer are rendered as graphics inside a LayerView. To access features visible in the view, use the query methods in the FeatureLayerView.
It is now possible to create a FeatureLayer from an existing PortalItem. For a working sample, please refer to the Create a layer from a PortalItem sample
It is now possible to create a FeatureLayer from an array of client-side graphics. For a working sample, please refer to the Create a FeatureLayer with an array of graphics sample
Performance has been improved as drawing is automatically managed by the API
It is now possible to filter features on the client, via the definitionExpression

Simplified getting, setting, and watching widgets to be more simplistic and consistent
Combined Attribution and logo widgets into new Attribution widget
Divided the Locate widget into updated Locate widget and new Track widget

Improved PopupTemplate

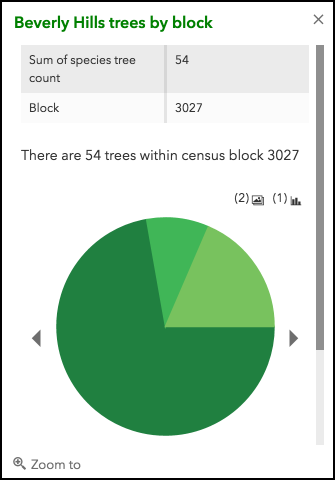

It is now possible to work with multiple popup elements within the PopupTemplate. You can choose from four types: text, fields, media (such as charts and images), and attachments. These elements can be added individually or combined. More information on working with these various elements can be found in the API reference specific for PopupTemplate.content.

New Widgets

Some new widgets have been added to the API, these include:

NavigationToggle widget - provides two simple buttons that toggle a SceneView's navigation mode
Legend widget - supports working with a FeatureLayer and/or StreamLayer

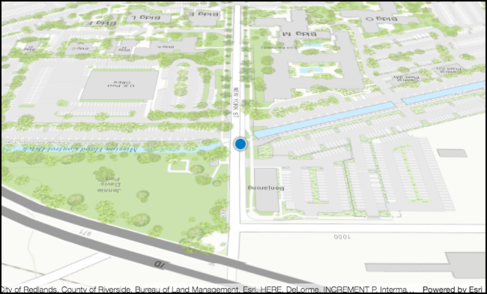

Track widget - provides geolocation functionality which accesses the geographic location of the tracking device and displays it on the View. An example of this can be seen using the Track widget simulation sample.

SDK improvements

The SDK has been updated by adding:

More samples and getting started tutorials
Improved experience for navigating the API reference
More guide topics, some of these include
- A Styling topic which discusses how to gain full control of styling widgets.
- A topic that discusses working with the View UI.

Bug fixes

BUG-000093402: JavaScript 4.0 beta3 fails to process the request with proxy with SceneView
BUG-000092521: Unable to draw a SimpleFillSymbol when using SceneView with graphics
NIM085930: Fixed an issue where the esri.geometry object type property was inconsistent with the geometryType property expected by feature collection

API Updates

The following provides a comprehensive overview of the changes in the API. This includes an all-inclusive list of updates made to the API between 4.0 beta 3 and final. This list is comprised of classes and objects that were added or renamed. In addition to properties, methods, and events that were added, renamed, or removed.

The view container

In beta 3, the view container did not require height and width to be set. At 4.0, height and width are required.

Renamed constant string values

Known string values for constants have all been converted to kebab-case for consistency throughout the API. For example, Symbol.type has many possible type values. Prior to 4.0 final, these values read similar to of these being, simplemarkersymbol, picturemarkersymbol, simplelinesymbol to name a few. These values are now simple-marker, picture-marker, and simple-line

dgrid and dstore upgrade

Version 4.0 of the ArcGIS API for JavaScript uses Dojo 1.10.4, dgrid version 1.0.0, and dstore version 1.1.1.

Classes/Objects that were renamed

ArcGISDynamicLayer is now called MapImageLayer
ArcGISElevationLayer is now called ElevationLayer
ArcGISImageLayer is now called ImageryLayer
ArcGISTiledLayer is now called TileLayer
WebTiledLayer is now called WebTileLayer - take note of the removed 'd'.
Renamed InitialState class to InitialViewProperties, accessible from esri/webscene/InitialViewProperties or esri/webmap/InitialViewProperties
Removed DynamicLayer class

Properties, methods, and events that were renamed, or removed

Basemap

esri/Basemap
- Removed elevationLayers, initialExtent, spatialReference, and visible properties

Color

esri/Color
- Renamed toJson() to toJSON()

Map

esri/Map
- Removed initialExtent, loaded, loadError, loadStatus and spatialReference properties
- Removed always(), cancelLoad(), getLayer(), isFulfilled(), isRejected(), isResolved(), load(), otherwise(), and then() methods
- Removed layer-add, layer-remove, and layer-reorder events.

Instead, see the Collection change event to listen for when items get added, moved or removed.

PopupTemplate

esri/PopupTemplate
- Removed showAttachments property

Request

esri/request
- Removed setRequestPreCallback() method

WebScene

esri/WebScene
- Removed initialExtent and initialState properties
- Removed getLayer() method
- Removed layer-add, layer-remove, and layer-reorder events
esri/webscene/Lighting
- Renamed the ambientOcclusion property to ambientOcclusionEnabled
- Renamed the directShadows property to directShadowsEnabled
