FieldsContent

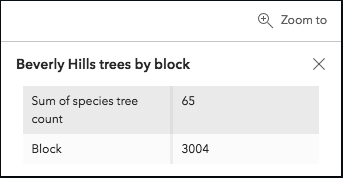

require(["esri/popup/content/FieldsContent"], function(FieldsContent) { /* code goes here */ });esri/popup/content/FieldsContentA FieldsContent popup element represents the FieldInfo associated with a feature. If this is not set within the content, it will revert to whatever may be set within the PopupTemplate.fieldInfos property.
- See also:
// Create the FieldsInfo for the FieldsContent popup element
// Field Info 1
let fieldInfo1 = new FieldInfo({
fieldName: "relationships/0/Point_Count_COMMON", // using a related table's field
label: "Sum of species tree count",
visible: true,
format: fieldFormat2,
statisticType: "sum"
});
// Field Info 2
let fieldInfo2 = new FieldInfo({
fieldName: "BLOCKCE10",
label: "Block",
visible: true
});
// Create the FieldsContent element
let fieldsElement = new FieldsContent({
fieldInfos: [fieldInfo1, fieldInfo2]
});Constructors
- new FieldsContent(properties)
- Parameter:properties Objectoptional
See the properties for a list of all the properties that may be passed into the constructor.
Property Overview
| Name | Type | Summary | Class | |
|---|---|---|---|---|
| String | The name of the class. more details | more details | Accessor | |
| FieldInfo[] | Array of fieldInfos. more details | more details | FieldsContent | |
| String | The type of popup element displayed. more details | more details | FieldsContent |
Property Details
The name of the class. The declared class name is formatted as
esri.folder.className.
Array of fieldInfos. If the
fieldInfosproperty is not provided directly within the content, the popup will display whatever is set in the PopupTemplate.fieldInfos.
- type Stringreadonly
The type of popup element displayed.
For FieldsContent the type is always "fields".
- Default Value:fields
Method Overview
| Name | Return Type | Summary | Class | |
|---|---|---|---|---|
| FieldsContent | Creates a deep clone of the FieldsContent class. more details | more details | FieldsContent | |
| * | Creates a new instance of this class and initializes it with values from a JSON object generated from a product in the ArcGIS platform. more details | more details | FieldsContent | |
| Object | Converts an instance of this class to its ArcGIS portal JSON representation. more details | more details | FieldsContent |
Method Details
- clone(){FieldsContent}
Creates a deep clone of the FieldsContent class.
Returns:Type Description FieldsContent A deep clone of the FieldsContent instance.
- fromJSON(json){*}static
Creates a new instance of this class and initializes it with values from a JSON object generated from a product in the ArcGIS platform. The object passed into the input
jsonparameter often comes from a response to a query operation in the REST API or a toJSON() method from another ArcGIS product. See the Using fromJSON() topic in the Guide for details and examples of when and how to use this function.Parameter:json ObjectA JSON representation of the instance in the ArcGIS format. See the ArcGIS REST API documentation for examples of the structure of various input JSON objects.
Returns:Type Description * Returns a new instance of this class.
- toJSON(){Object}
Converts an instance of this class to its ArcGIS portal JSON representation. See the Using fromJSON() guide topic for more information.
Returns:Type Description Object The ArcGIS portal JSON representation of an instance of this class.
