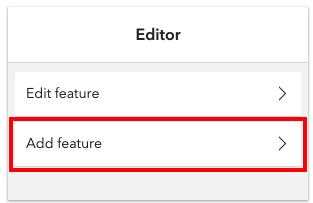

A read-only class containing the logic used when creating features using the Editor widget. This is indicated via the widget's Add feature option.

The following stages depict adding a new feature with this workflow.

Stage	Add feature example

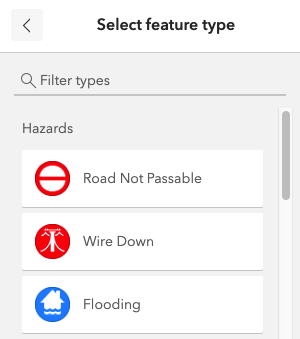

1 - After selecting Add feature, the first panel contains the CreateWorkflowData.viewModel.
2 - After a template is selected, the next panel has access to CreateWorkflowData.creationInfo and CreateWorkflowData.viewModel.

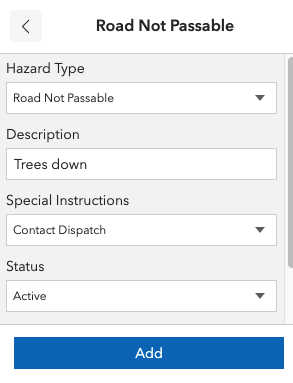

3 - Once a feature geometry is specified, the subsequent attribute panel has access to CreateWorkflowData.creationInfo, UpdateWorkflowData.edits, and CreateWorkflowData.viewModel.

This workflow is only enabled if the feature service allows this operation. For example, if a feature service is only enabled to allow updates, 'Add features' is not enabled.

See also:

• Editor
• Workflow
• UpdateWorkflow
• CreateWorkflowData
• UpdateWorkflowData

• Guide topic: Widget development - ViewModel pattern

• Sample - Edit features with the Editor widget

• Sample - Edit features in 3D with the Editor widget

• Sample - Editor widget with configurations

• Sample - Popup with edit action

Property Overview

Property Details

data CreateWorkflowData|UpdateWorkflowDatareadonly inherited

Shared workflow data. Can be either CreateWorkflowData or UpdateWorkflowData.

declaredClass Stringreadonly inherited

The name of the class. The declared class name is formatted as esri.folder.className.

hasNextStep Booleanreadonly inherited

This property indicates whether there is a next step in the workflow.

hasPreviousStep Booleanreadonly inherited

This property indicates if there is a previous step in the workflow.

started Booleanreadonly inherited

Indicates whether the workflow is considered active.

Default Value:false

stepId Stringreadonly inherited

The name of the current step in the workflow.

type Stringreadonly

The type of workflow.

For CreateWorkflow the type is always "create".

Method Overview

Method Details

cancel()inherited

Cancels the active workflow.

commit()inherited

Call this method when the workflow is considered finished. This method is used to help process the editing results.

next()inherited

Moves to the next step in the workflow.

previous()inherited

Moves to the previous step in the workflow.

reset()inherited

Resets the workflow.

start()inherited

Starts the workflow.
