ScaleRangeSlider

require(["esri/widgets/ScaleRangeSlider"], function(ScaleRangeSlider) { /* code goes here */ });

Class: esri/widgets/ScaleRangeSlider

Inheritance: ScaleRangeSlider Widget Accessor

Since: ArcGIS API for JavaScript 4.13

The ScaleRangeSlider widget allows the user to set a minimum and maximum scale based on named scale ranges. When a layer is provided to the widget, the minScale and maxScale are set to the scale range of the layer.

The user can update the scale range by dragging thumbs across the slider to update the minScale and maxScale. The user can also change the minScale and maxScale by using the dropdowns underneath the minScaleLimit and maxScaleLimit. The thumbnail shows a preview of the scale based on the region specified.

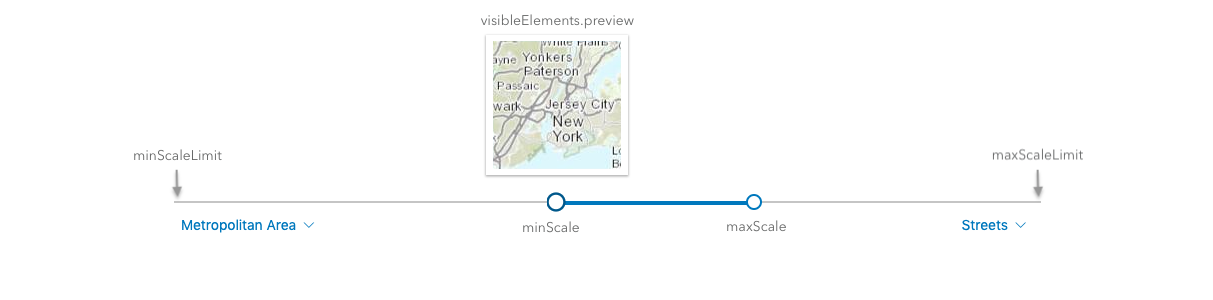

widgets-scaleRangeSlider

For information about gaining full control of widget styles, see the Styling topic.

See also:

Example:

const scaleRangeSlider = new ScaleRangeSlider({
  view: view,
  layer: featureLayer,  // scale range of this layer sets initial minScale and maxScale
  region: "MX",  // preview thumbnail will be of Mexico
});
view.ui.add(scaleRangeSlider, "bottom-left");

// to update the layer min/max scale based on the slider
scaleRangeSlider.watch(["minScale", "maxScale"], function(value, oldValue, name) {
  featureLayer[name] = value;
});

Constructors

new ScaleRangeSlider(properties)

Parameter:

properties Object

optional

See the properties for a list of all the properties that may be passed into the constructor.

Property Overview

Any properties can be set, retrieved or listened to. See the Working with Properties topic.

Show inherited properties Hide inherited properties

Type	Summary	Class
String\|HTMLElement	The ID or node representing the DOM element containing the widget. more details	more details	Widget
String	The name of the class. more details	more details	Accessor
Boolean	When `true`, sets the widget to a disabled state so the user cannot interact with it. more details	more details	ScaleRangeSlider
String	The unique ID assigned to the widget when the widget is created. more details	more details	Widget
String	The widget's default label. more details	more details	ScaleRangeSlider
Layer	When provided, the initial minScale and maxScale values will match the layer's. more details	more details	ScaleRangeSlider
Number	The maximum scale of the active scale range. more details	more details	ScaleRangeSlider
Number	The lowest possible maximum scale value on the slider. more details	more details	ScaleRangeSlider
Number	The minimum scale of the active scale range. more details	more details	ScaleRangeSlider
Number	The highest possible minimum scale value on the slider. more details	more details	ScaleRangeSlider
SupportedRegion	The region that the scale thumbnails will focus on. more details	more details	ScaleRangeSlider
MapView\|SceneView	A reference to the MapView or SceneView. more details	more details	ScaleRangeSlider
ScaleRangeSliderViewModel	The view model for this widget. more details	more details	ScaleRangeSlider
VisibleElements	The visible elements that are displayed within the widget. more details	more details	ScaleRangeSlider

Property Details

container String|HTMLElement inherited

The ID or node representing the DOM element containing the widget. This property can only be set once. The following examples are all valid use cases when working with widgets.

Examples:

// Create the HTML div element programmatically at runtime and set to the widget's container
const basemapGallery = new BasemapGallery({
  view: view,
  container: document.createElement("div")
});

// Add the widget to the top-right corner of the view
view.ui.add(basemapGallery, {
  position: "top-right"
});

// Specify an already-defined HTML div element in the widget's container

const basemapGallery = new BasemapGallery({
  view: view,
  container: basemapGalleryDiv
});

// Add the widget to the top-right corner of the view
view.ui.add(basemapGallery, {
  position: "top-right"
});

// HTML markup
<body>
  <div id="viewDiv"></div>
  <div id="basemapGalleryDiv"></div>
</body>

// Specify the widget while adding to the view's UI
const basemapGallery = new BasemapGallery({
  view: view
});

// Add the widget to the top-right corner of the view
view.ui.add(basemapGallery, {
  position: "top-right"
});

declaredClass Stringreadonly inherited

The name of the class. The declared class name is formatted as esri.folder.className.

disabled Boolean

When true, sets the widget to a disabled state so the user cannot interact with it.

Default Value:false

id String inherited

The unique ID assigned to the widget when the widget is created. If not set by the developer, it will default to the container ID, or if that is not present then it will be automatically generated.

label String

The widget's default label.

layer Layer

When provided, the initial minScale and maxScale values will match the layer's.

maxScale Number

The maximum scale of the active scale range. When the maxScale reaches the maxScaleLimit, the maxScale value becomes 0 and there is no maximum scale set.

maxScaleLimit Number

The lowest possible maximum scale value on the slider.

minScale Number

The minimum scale of the active scale range. When the minScale reaches the minScaleLimit, the minScale value becomes 0 and there is no minimum scale.

minScaleLimit Number

The highest possible minimum scale value on the slider.

region SupportedRegion

The region that the scale thumbnails will focus on. Each region comes from the ISO 3166-1 alpha-2 code. See SupportedRegion for the list of regions that are currently supported.

Default Value:"US"

view MapView|SceneView

A reference to the MapView or SceneView. Set this to link the widget to a specific view.

viewModel ScaleRangeSliderViewModelautocast

The view model for this widget. This is a class that contains all the logic (properties and methods) that controls this widget's behavior. See the ScaleRangeSliderViewModel class to access all properties and methods on the widget.

visibleElements VisibleElementsautocast

The visible elements that are displayed within the widget. This property provides the ability to turn individual elements of the widget's display on/off.

Example:

scaleRangeSlider.visibleElements = {
  preview: false  // thumbnail preview of map will not be displayed
}

Method Overview

Show inherited methods Hide inherited methods

Return Type	Summary	Class
String	A utility method used for building the value for a widget's `class` property. more details	more details	Widget
	Destroys the widget instance. more details	more details	Widget
Boolean	Emits an event on the instance. more details	more details	Widget
Boolean	Indicates whether there is an event listener on the instance that matches the provided event name. more details	more details	Widget
Object	Registers an event handler on the instance. more details	more details	Widget
	Widget teardown helper. more details	more details	Widget
	This method is primarily used by developers when implementing custom widgets. more details	more details	Widget
Object	This method is primarily used by developers when implementing custom widgets. more details	more details	Widget
	Renders widget to the DOM immediately. more details	more details	Widget
	This method is primarily used by developers when implementing custom widgets. more details	more details	Widget

Method Details

classes(classNames){String}inherited

A utility method used for building the value for a widget's class property. This aids in simplifying CSS class setup.

Parameter:

classNames String|String []|Object

repeatable

The class names.

Returns:

Type	Description
String	The computed class name.

See also:

Guide - Widget development (rendering)

Example:

// .tsx syntax showing how to set CSS classes while rendering the widget

render() {
  const dynamicIconClasses = {
    [CSS.myIcon]: this.showIcon,
    [CSS.greyIcon]: !this.showIcon
  };

  return (
    <div class={classes(CSS.root, CSS.mixin, dynamicIconClasses)} />
  );
}

destroy()inherited

Destroys the widget instance.

emit(type, event){Boolean}inherited

Emits an event on the instance. This method should only be used when creating subclasses of this class.

Parameters:

type String

The name of the event.

event Object

optional

The event payload.

Returns:

Type	Description
Boolean	`true` if a listener was notified

hasEventListener(type){Boolean}inherited

Indicates whether there is an event listener on the instance that matches the provided event name.

Parameter:

type String

The name of the event.

Returns:

Type	Description
Boolean	Returns true if the class supports the input event.

on(type, listener){Object}inherited

Registers an event handler on the instance. Call this method to hook an event with a listener.

Parameters:

type String|String []

A event type, or an array of event types, to listen for.

listener Function

The function to call when the event is fired.

Returns:

Type Description

Object

Returns an event handler with a remove() method that can be called to stop listening for the event(s).

Property	Type	Description
remove	Function	When called, removes the listener from the event.

Example:

view.on("click", function(event){
  // event is the event handle returned after the event fires.
  console.log(event.mapPoint);
});

own(handles)inherited

Widget teardown helper. Any handles added to it will be automatically removed when the widget is destroyed.

Parameter:

handles WatchHandle|WatchHandle []

Handles marked for removal once the widget is destroyed.

postInitialize()inherited

This method is primarily used by developers when implementing custom widgets. Executes after widget is ready for rendering.

render(){Object}inherited

This method is primarily used by developers when implementing custom widgets. It must be implemented by subclasses for rendering.

Returns:

Type	Description
Object	The rendered virtual node.

renderNow()inherited

Renders widget to the DOM immediately.

scheduleRender()inherited

This method is primarily used by developers when implementing custom widgets. Schedules widget rendering. This method is useful for changes affecting the UI.

Type Definitions

SupportedRegion String

The region that the scale thumbnails will focus on. Each region comes from the ISO 3166-1 alpha-2 code.

Code	Region
`AE`	United Arab Emirates
`AR`	Argentina
`AT`	Austria
`AU`	Australia
`BE`	Belgium
`BG`	Bulgaria
`BO`	Bolivia
`BR`	Brazil
`CA`	Canada
`CH`	Switzerland
`CI`	Cote D'Ivoire
`CL`	Chile
`CN`	China
`CO`	Colombia
`CR`	Costa Rica
`CZ`	Czech Republic
`DE`	Germany
`DK`	Denmark
`EE`	Estonia
`EG`	Egypt
`ES`	Spain
`FI`	Finland
`FR`	France
`GB`	Great Britain
`GL`	Greenland
`GR`	Greece
`GT`	Guatemala
`HK`	Hong Kong
`ID`	Indonesia
`IE`	Ireland
`IL`	Israel
`IN`	India
`IQ`	Iraq
`IS`	Iceland
`IT`	Italy
`JP`	Japan
`KE`	Kenya
`KR`	South Korea
`KW`	Kuwait
`LI`	Liechtenstein
`LT`	Lithuania
`LU`	Luxembourg
`LV`	Latvia
`MA`	Morocco
`MG`	Madagascar
`ML`	Mali
`MO`	Macao
`MX`	Mexico
`MY`	Malaysia
`NI`	Nicaragua
`NL`	Netherlands
`NO`	Norway
`NZ`	New Zealand
`PE`	Peru
`PL`	Poland
`PR`	Puerto Rico
`PT`	Portugal
`RO`	Romania
`RU`	Russia
`RW`	Rwanda
`SE`	Sweden
`SG`	Singapore
`SK`	Slovakia
`SR`	Suriname
`SV`	El Salvador
`TH`	Thailand
`TN`	Tunisia
`TW`	Taiwan
`US`	United States
`VE`	Venezuela
`VI`	U.S. Virgin Islands
`ZA`	South Africa

Possible Values:"AE"|"AR"|"AT"|"AU"|"BE"|"BG"|"BO"|"BR"|"CA"|"CH"|"CI"|"CL"|"CN"|"CO"|"CR"|"CZ"|"DE"|"DK"|"EE"|"EG"|"ES"|"FI"|"FR"|"GB"|"GL"|"GR"|"GT"|"HK"|"ID"|"IE"|"IL"|"IN"|"IQ"|"IS"|"IT"|"JP"|"KE"|"KR"|"KW"|"LI"|"LT"|"LU"|"LV"|"MA"|"MG"|"ML"|"MO"|"MX"|"MY"|"NI"|"NL"|"NO"|"NZ"|"PE"|"PL"|"PR"|"PT"|"RO"|"RU"|"RW"|"SE"|"SG"|"SK"|"SR"|"SV"|"TH"|"TN"|"TW"|"US"|"VE"|"VI"|"ZA"

VisibleElements

The visible elements that are displayed within the widget. This provides the ability to turn individual elements of the widget's display on/off.

Property:

preview Boolean

Indicates whether the preview thumbnail of the region is visible. Default value is true.
